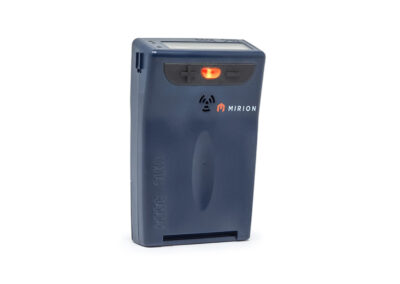

Electronic personal dosimeter Mirion DMC 3000 PTB Autonomous
The Mirion DMC 3000 PTB Autonom is a compact electronic personal dosemeter for measuring the deep personal dose Hp(10) from X-ray and gamma radiation. With its excellent energy response in the range of 15 keV to 7 MeV, triple alarm indication (acoustic, visual, and vibration), and convenient autonomous operating mode without additional accessories, the DMC 3000 impresses with simple operation and high reliability. The PTB type examination certificate ensures legally compliant applicability in Germany.
Product Highlights
Compact, lightweight design: 86 x 56 x 21 mm, approx. 84 g – comfortable to wear on the body
Triple alarm indication: acoustic, visual, and vibration
Excellent energy response for X-ray and gamma radiation (15 keV – 7 MeV)
Up to 9 months battery life with a standard AAA alkaline battery
Autonomous operating mode: direct settings and operation on the device without additional accessories
- Performance features
- Technical Data
- Optional accessories
- Autonomous Operating Mode
- Conformity Assessment
- Electronic personal dosemeter for measuring the deep personal dose Hp(10) from X-ray and gamma radiation
- Excellent energy response for X-ray and gamma radiation in the range of 15 keV to 7 MeV
- High-resolution LC display with backlight
- Triple alarm indication: acoustic, visual, and vibration
- Straightforward operation – menu navigation via two push buttons (+/–) on the top of the device
- High resistance to mechanical stress thanks to robust construction
- IP67 protection rating: dust-proof and waterproof
- Autonomous operating mode: settings directly on the dosemeter, no accessories required
- Variably adjustable pre-alarm and alarm thresholds for dose (1 µSv – 10 Sv)
- With PTB type examination certificate
| Dose quantity | Deep personal dose Hp(10) |
| Radiation type | X-ray and gamma radiation |
| Energy range | 15 keV – 7 MeV |
| Detector | Two silicon diodes with energy compensation filter |
| Nominal range of use dose | 10 µSv – 10 Sv |
| Nominal range of use dose rate | 0.1 µSv/h – 10 Sv/h |
| Radiation pulse duration | 1 ms – 10 s |
| Peak pulse dose rate | 0 Sv/h – 5 Sv/h |
| Alarm indication | Acoustic, visual, and vibration alarm |
| Pre-alarm and alarm threshold (dose) | 1 µSv – 10 Sv (variably adjustable) |
| Dimensions | 86 mm x 56 mm x 21 mm (H x W x D), without clip |
| Weight | approx. 84 g including battery and clip |
| Power supply | 1 standard AAA alkaline battery; typical life: 9 months (at 8 hrs/day, 5 days/week, alarm rate 0.2%) |
| Operating temperature range | -10°C to +50°C |
| Storage temperature range | -20°C to +70°C (without battery) |
| Humidity | < 90% at 42°C |
| Protection rating | IP67 – dust-proof and waterproof |
For detailed technical data, please refer to our product data sheet for this article. Click here to download.
- LDM 3200: Access control reader including LDM Access software, panel PC with touchscreen, dosemeter reader, keyboard, and barcode reader
- DosiServ Lite: Electronic dosimetry management software for healthcare facilities and research institutions
The DMC 3000 PTB Autonom operates autonomously and can be used without accessories. The user makes settings and changes directly on the dosemeter. The intuitive menu navigation via two push buttons (+/–) and the LC display enables quick configuration of all parameters. Even in autonomous mode, a dosemeter reader with corresponding software can optionally be used for configuration.
The conformity assessment of this measuring instrument replaces the former initial verification. Under current law, only the distributor can initiate the conformity assessment and issue the declaration of conformity. The initial verification after 2 years can also be commissioned by the user.
Note: The commissioning of the dosemeter must be reported to the competent authority within 6 weeks (notification requirement according to § 32 MessEG). The competent authorities provide the user notification on the portal www.eichamt.de.
Application areas
FIRE DEPARTMENT & CIVIL DEFENSE
NON-DESTRUCTIVE TESTING (NDT)
NUCLEAR MEDICINE
Industry
Research & Education
Downloads
Technical data sheet
Download the technical data sheet for this product in PDF format now.
