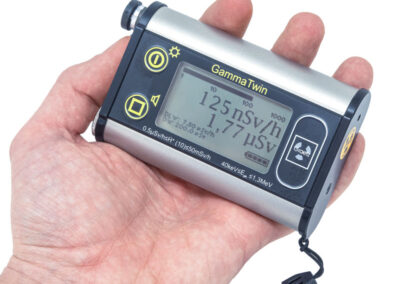

Dose rate meter GRAETZ GammaTwin S

Compact electronic dose rate meter with a “twin display” that shows dose rate and dose simultaneously. The dose rate meter GRAETZ GammaTwin has a connection option for a pulse probe.

Product Highlights

Dose rate meter GRAETZ GammaTwin S

Large backlit LC display with a so-called “twin display”: Simultaneous display of dose rate and dose

Acoustic warning signal when warning thresholds are exceeded

Intuitive operation

Compact and robust design, dust and splash water protection (protection class IP54)

Integrated connection option for pulse probes

  • Small, handy, calibratable dose rate meter for measuring gamma and X-ray radiation for the measurands Ḣ*(10) ambient dose equivalent rate and ambient dose equivalent H*(10) (to record the personal dose, a meter with the measurand Hp(10) must be used).
  • Detector: Energy-compensated Geiger-Müller counter tube
  • Large, digital measured value display on LC display (backlit)
  • Optional simultaneous or separate dose and dose rate display, additional analog display of dose rate as logarithmic bar display
  • 4 factory preset warning thresholds for dose and dose rate; customer-specific modification on request.
  • Switchable acoustic single pulse detection
  • Automatic continuous storage of the dose in a non flüchtiger memory.
  • Storage of the dose and the set parameters even when the battery is changed
  • Constant self-monitoring
  • Designed for rough use, aluminum housing, protection class IP54
  • Menu-driven operator guidance
  • Durable nylon belt pouch is included in delivery
  • Connection option for an external pulse probe:
    • 18526 D or ABG170 for contamination measurement (α, β, γ)
    • Immersion probe ZP1083 D (β, γ)
    • NaI scintillation probe 2002 for high-sensitivity measurements (β, γ)
  • With the probe connected:
    • Measured value display in Ips
    • Display of the temporal course of the pulse rates as a search function for tracing radioactive sources or contamination possible
    • Preselectable pulse rate warning threshold: double or triple zero effect
Display ranges Dose 0 nSv ≤ H*(10) ≤ 1.0 Sv
Dose rate 0 nSv/h ≤ Ḣ*(10) ≤ 50 mSv/h
Measuring ranges Dose 0.5 µSv ≤ H*(10) ≤ 1 Sv
Dose rate 0.5 µSv/h ≤ Ḣ*(10) ≤ 50 mSv/h
Impulses
Given by the probe used
Dimensions approx. 28 × 67 × 105 mm
Weight (incl. batteries) approx. 200 g

For detailed technical data, please refer to our product data sheet for this article. Click here to download.

Application areas

Dose rate meter GRAETZ GammaTwin S

FIRE BRIGADES & CIVIL DEFENSE

NON-DESTRUCTIVE TESTING (NDT)

NUCLEAR MEDICINE

Industry

Research & Education

Downloads

Dose rate meter GRAETZ GammaTwin S

Technical data sheet

Download the technical data sheet for this product in PDF format now.
